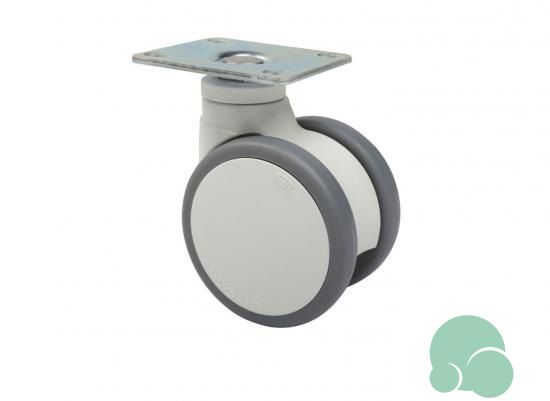

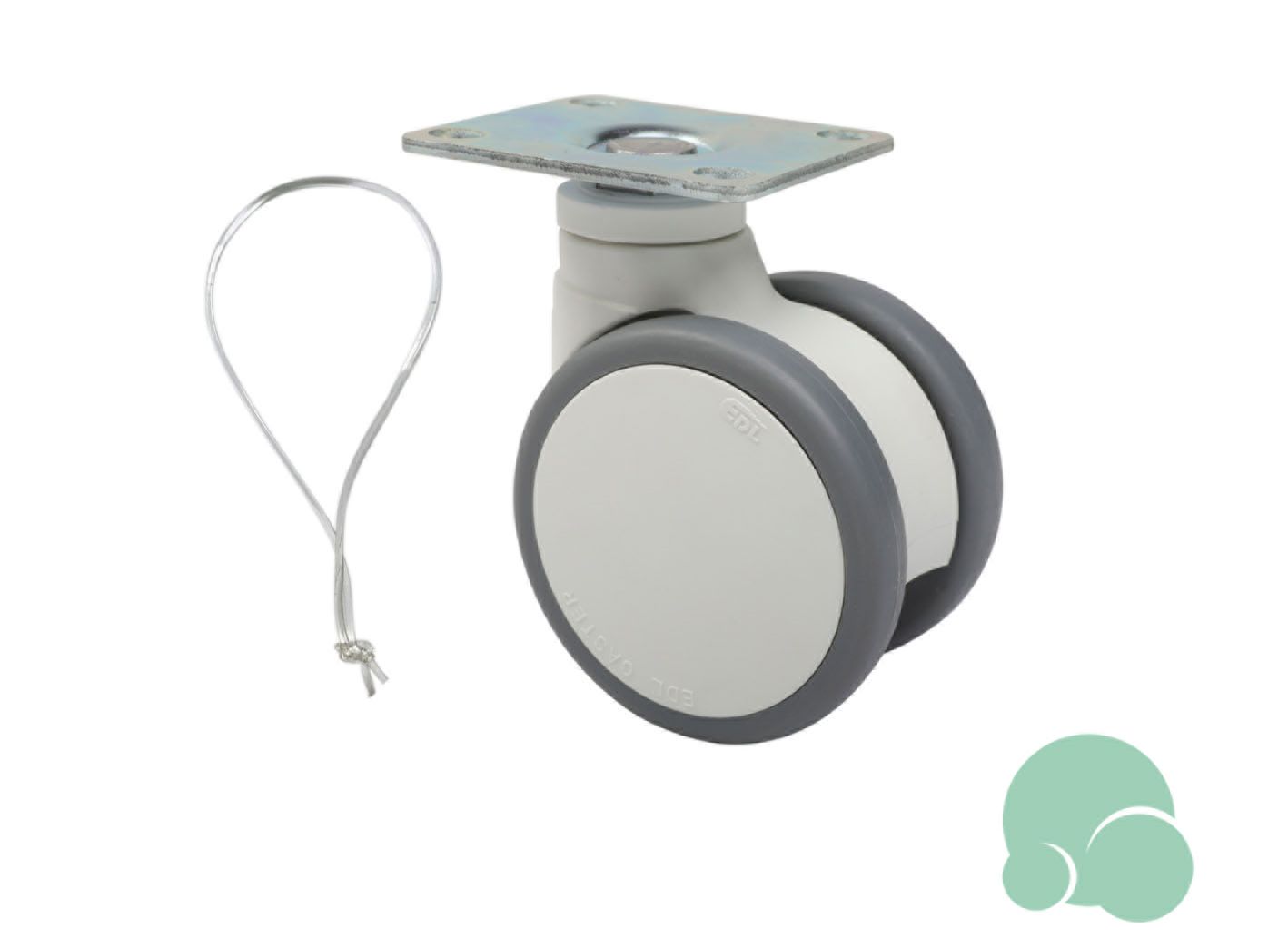

In the manufacturing of wheels using overmolding techniques—where a soft TPU (thermoplastic polyurethane) outer layer is bonded to a harder substrate like PP (polypropylene) or nylon—engineers often face a critical challenge: the TPU may fail to properly adhere or fully encapsulate the harder material, leading to defects and reduced product durability. One effective method to overcome this is the two-shot injection molding process, where the TPU outer layer is molded first, followed by injecting the hard plastic (PP or nylon) into it. This approach relies on high-temperature bonding to create a secure, integrated part. Let’s explore why this issue occurs and how to implement this solution successfully. Common Causes of Overmolding Failure When TPU is overmolded onto PP or nylon, several factors can lead to poor encapsulation or adhesion: Material Incompatibility: TPU, PP, and nylon have different chemical polarities and surface energies, making natural adhesion difficult. Insufficient Melt Temperature: If the hard plastic substrate is not hot enough when the TPU is injected, the materials won't fuse properly. Shrinkage Mismatch: Different cooling and shrinkage rates can cause the TPU to pull away from the rigid core. Mold Design Flaws: Inadequate venting, gate placement, or insufficient injection pressure can prevent complete filling and wrapping. The Two-Shot Molding Solution: TPU First, Then Hard Plastic The traditional method injects the hard material first, then overmolds TPU onto it. Reversing this sequence—molding the TPU outer shell first, then injecting PP or nylon inside it—can solve many encapsulation problems. Here's how and why it works: Process Breakdown: Step 1: The TPU is injected to form the flexible outer wheel (tread, sidewalls). Step 2: While the TPU is still very hot and within its processing temperature window, the rigid plastic (PP/nylon) is injected into its core or designated cavity. Step 3: At this high interface temperature, the incoming melt of the hard plastic slightly remelts the inner surface of the TPU, allowing the materials to interdiffuse and mechanically lock together at the molecular level. Key Advantages of This Method: Superior Mechanical Lock: The high-temperature injection of the hard plastic creates a strong fusion bond as it melts into the TPU's inner layer. Better Encapsulation: The TPU outer shell acts as a defined mold cavity for the hard core, ensuring complete containment and eliminating flow fronts that cause incomplete wraps. Reduced Stress: Since the TPU cools and shrinks around the already-solidified hard core (which cools last), residual stresses are minimized, improving dimensional stability. Critical Parameters for Success To implement this method effectively, precise control of process parameters is non-negotiable: Temperature Control: The interface temperature is the most critical factor. The inner surface of the TPU must be above its softening point when the hard plastic is injected. This o...
